Insights How-To Add Dashed Line to a Widget

How to add a custom dashed line

Sometimes we might want to add a visual threshold to a widget represented by a dashed line; similar to the example below.

A dashed line is not available through UI; but it can be added by the custom script.

How-to steps:

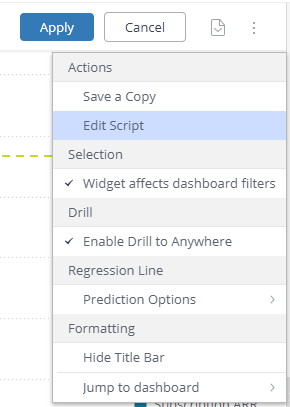

1. In the edit mode go to the top right corner and click 'Options' followed by 'Edit Script'. Here you can edit the widget's javascript extension.

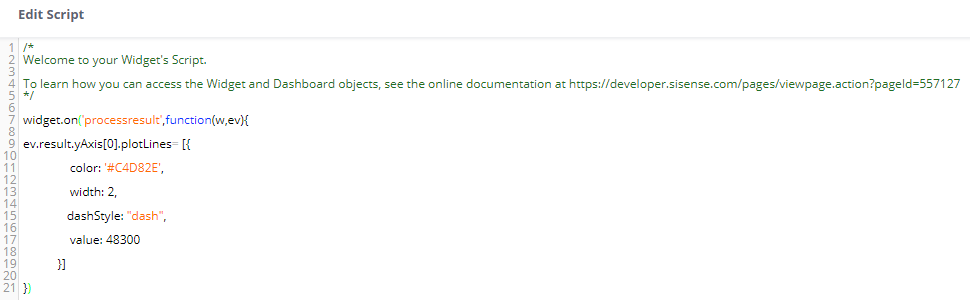

2. Carefully copy and paste this script into the 'Edit Script' window.

   widget.on('processresult';function(w;ev){
   ev.result.yAxis[0].plotLines= [{

                  color: '#C4D82E';
                  width: 2;
                  dashStyle: "dash";
                  value: 48300
              }]
   })

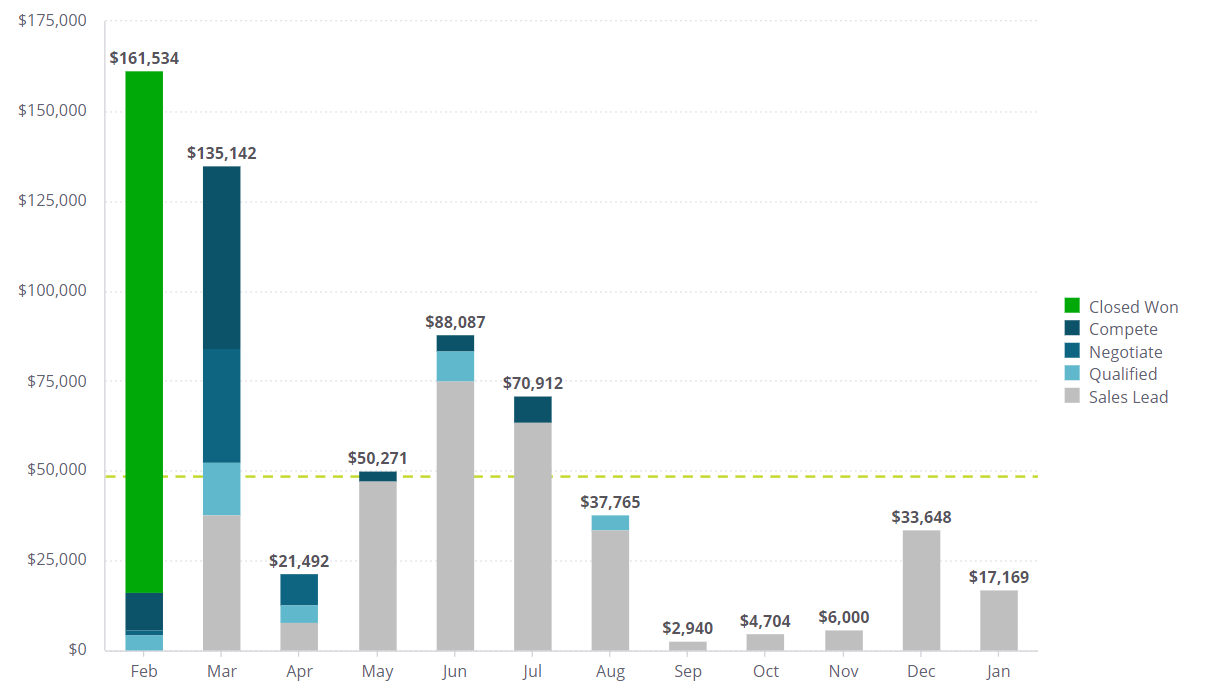

   The end result should look like this:





3. In the example above the dashed line is placed at $48;300. You can customize the new dashed line on the Y-axis by changing the purple parts of the script.
